分类:
叉拴式、插件式、贴片式
电压：250Vdc Max
电流：10A-500A
应用：
5G通信；锂电池；分布式储能；低速出行；转换器；逆变器；DC电源
规格选型请参考以下表格：
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

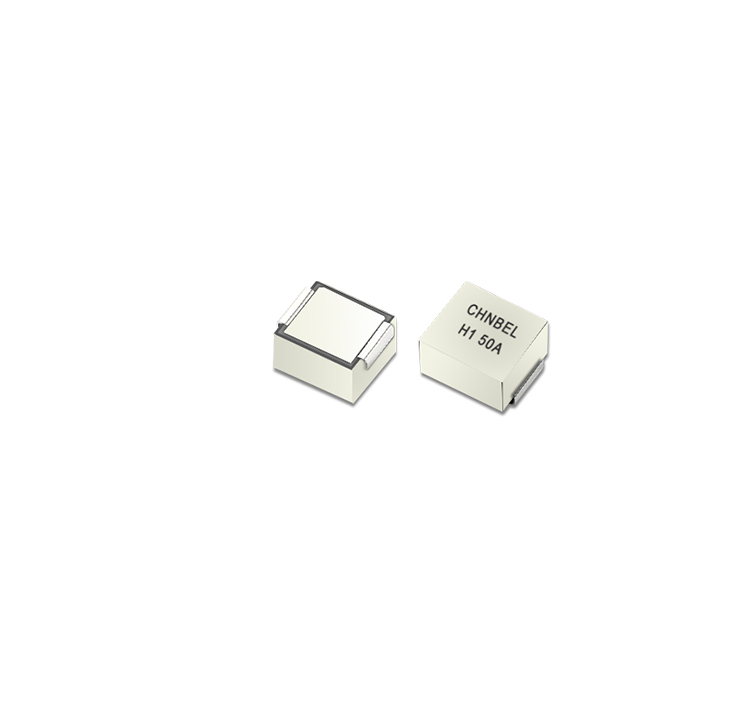

| HVH1 | 4.0x5.8x6.0mm | 50-100A | 75Vdc | 1000A | FAST ACTING | UL248-1 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

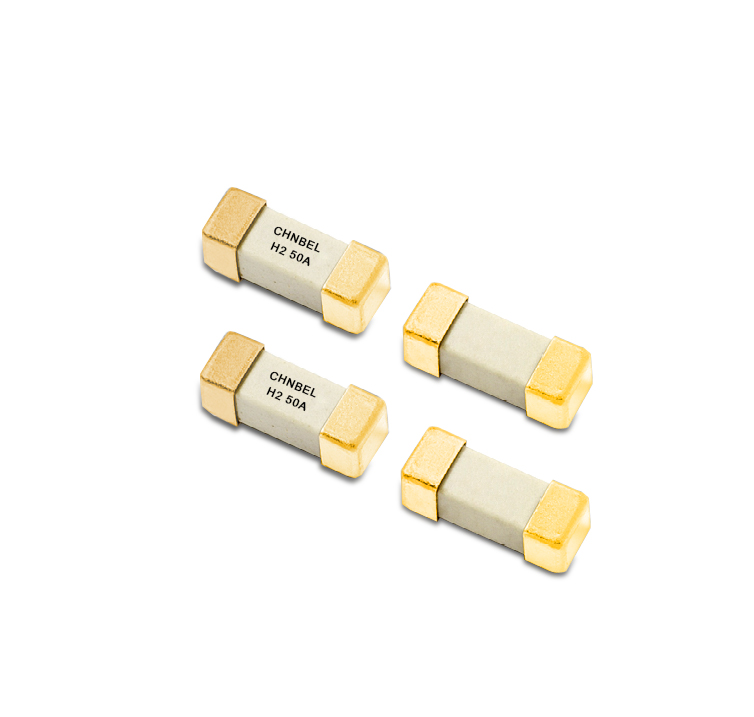

| HVH2 | 12.4x4.5x4.5mm | 50-100A | 250Vac | 300A | FAST ACTING | UL248-1 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

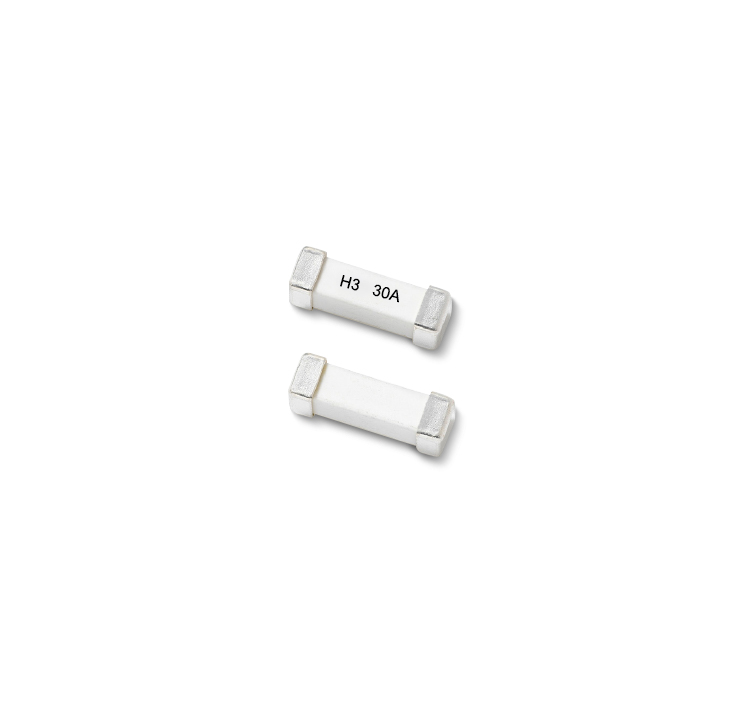

| HVH3 | 10x3.2x3.2mm | 30-60A | 250V(MAX) | 200A | FAST ACTING | UL248-1 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

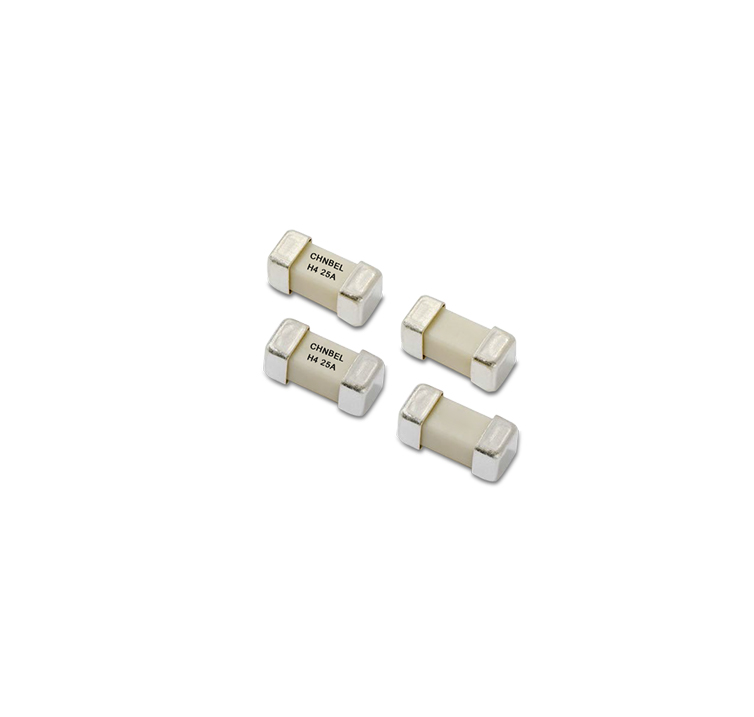

| HVH4 | 6.1x2.6x2.6mm | 25-40A | 250Vac/75Vdc | 400A | FAST ACTING | UL248-1 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

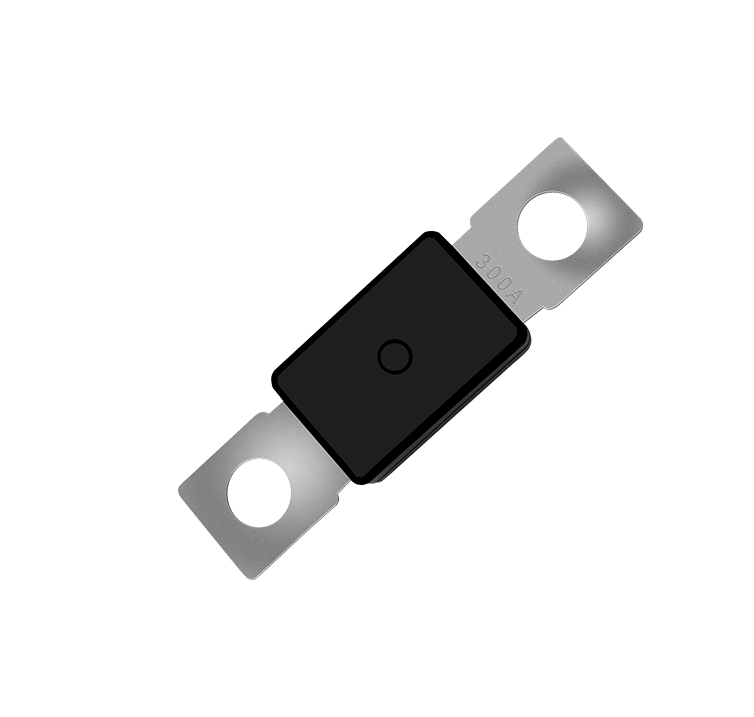

| MID.01R | 12 x 41mm | 20-200A | 58Vdc | 1000A | FAST ACTING | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

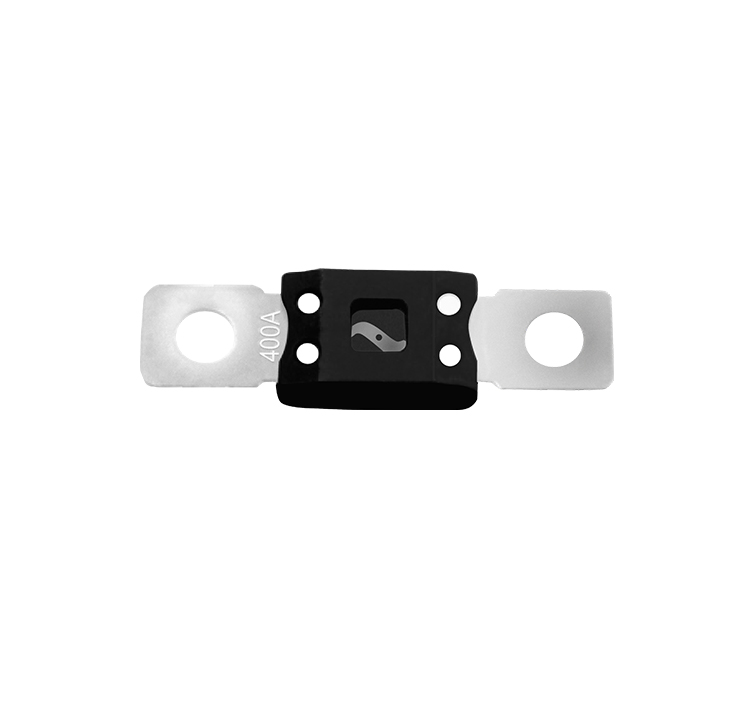

| MIG.02R | 16.2 x 68.8mm | 40-500A | 72Vdc（max） | 1000A | Fast Acting | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |
| MIG.03R | 22.5 x 80.0mm | 40-500A | 125Vdc（max） | 1000A | Fast acting | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

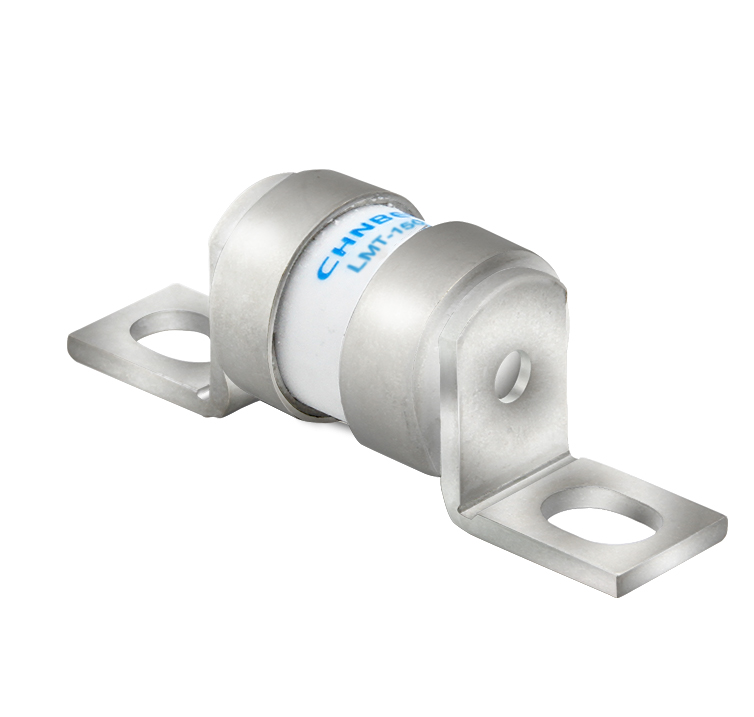

| LMT-150-200 | 17.7 x 55.5mm | 200A | 150Vdc | 20kA | FAST ACTING | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |

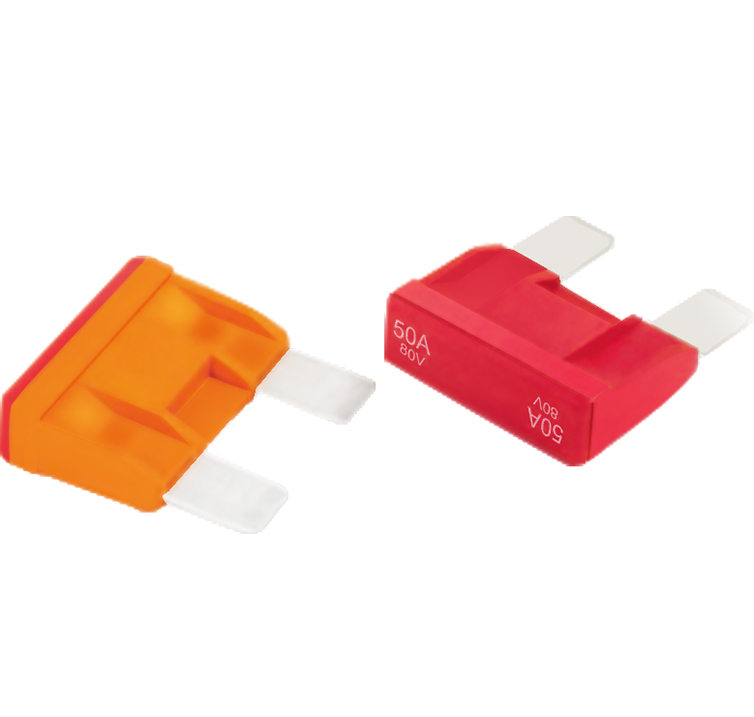

| CHMD.01P | 小号（11x16.3mm） | 1-40A | 58Vdc | 1000A | FAST ACTING | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |
| CHMD.02P | 中号（19x18.5mm） | 1-40A | 58Vdc | 1000A | FAST ACTING | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |
| CHMD.02N | 中号（19x19.5mm） | 1-40A | 80Vdc | 1000A | FAST ACTING | ISO 8820 |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Standard |
| CHMD.03P | 大号（29x34mm） | 20-100A | 80Vdc | 1000A | FAST ACTING | ISO 8820 |
分类:
叉拴式、插件式、贴片式
电压：250Vdc Max
电流：10A-500A
应用：
5G通信；锂电池；分布式储能；低速出行；转换器；逆变器；DC电源
规格选型请参考以下表格：
